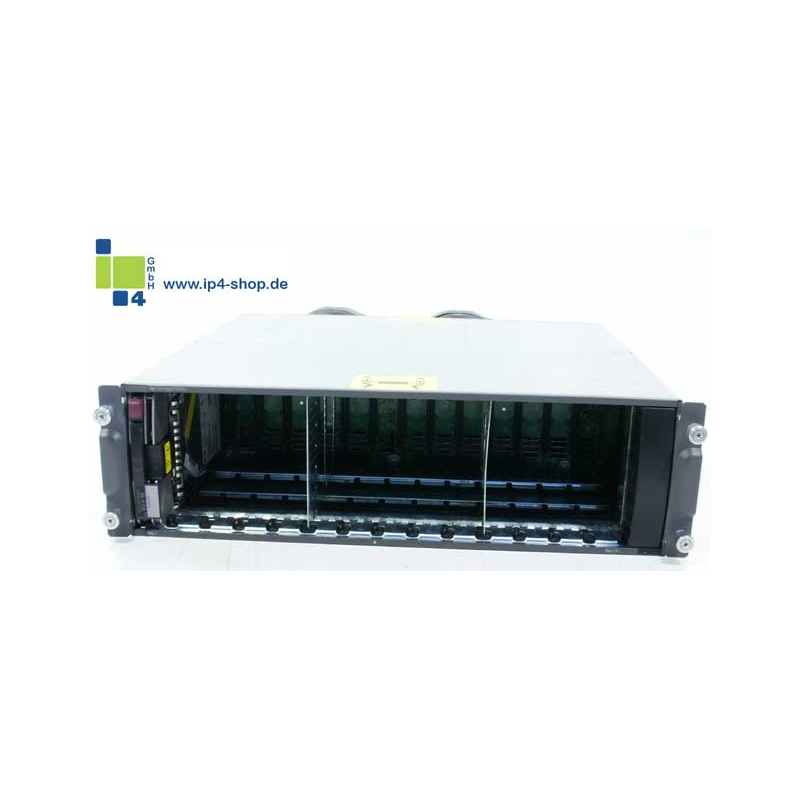

HP Storageworks MSA30 MI Quad Bus Enclosure 359645-B21 REF

Kategorie

Enclosures

Hersteller

HP Hewlett-Packard

Beschreibung

Hinweise:

Achtung, abweichend vom Bild werden standardmäßig keine Blindblenden für Festplattenslots, Rackmountkits und Festplatten mitgeliefert, diese können Sie seperat hier im Shop ordern.
Zustand: used / refurbished

Produktbeschreibung vom Hersteller

HP 302970-B21Storageorks MSA30 MI

Overview

HP 30 Modular Smart Array Multi-Initiator Enclosure

(Supporting HP-UX on HP Integrity and HP 9000 Servers, and OpenVMS on HP Integrity only)

The HP Modular Smart Array 30 Enclosure (hereafter referred to as "MSA30") is an Ultra320 SCSI disk drive storage enclosure. These enclosures deliver industry-leading data performance, availability, storage density, and upgradeability to meet customers' demanding and growing storage needs. The drive carrier is designed to support the fastest current Ultra320 hard drives on the same SCSI bus.

The HP Modular Smart Array 30 Multi-Initiator (hereafter referred to as "MSA30 MI") builds on the MSA30 design by adding a 4-port I/O Module for the MSA30 to support Multi-Initiator JBOD Clusters. The MSA30 MI will replace the DS2300 and it supports HP-UX on HP Integrity and HP 9000 Servers only. The MSA30 MI does not support ProLiant Servers.

The MSA30 MI also supports HP Serviceguard software on HP-UX. HP Serviceguard monitors the health of each node and rapidly responds to failures in a way that minimizes or eliminates application downtime.

Models:
Model MSA30 MI	Rack-mountable, U320 SCSI 14-drive enclosure with dual bus, redundant power supplies, 4-port I/O Module for the MSA30 to support Multi-Initiator JBOD Clusters	359645-B21
	NOTE 1: In order to configure the MSA30 MI in a rack, have it cabled and have hard drives added the following part number must be ordered 374875-605. NOTE 2: U320 performance requires a compatible U320 controller. This is noted in the product documentation. A U320 compatible EMU is also required for upgrades to U320 I/O modules

Technical Specifications

Protocol Support	Wide Ultra320 (LVD)
	Wide Ultra3 (LVD)
	Wide Ultra2 (LVD)
O/S Support	HP-UX 11.00 HP-UX 11i v1 HP-UX 11i v2 OpenVMS 8.2-1 Defined by specific HP array controller or SCSI adapter used; please refer to the QuickSpecs and/or User Guide of the specific array controller or SCSI adapter
Dimensions (HxWxD)	Rack	5.2 x 19 x 20.5 in (13.1 x 47.88 x 51.66 cm)
Shipping Dimensions (HxWxD)	Rack	34.25 x 14.5 x 31.25 in (86.31 x 36.54 x 78.75 cm)
Weight	Rack	68 lb (30.9 kg)
Shipping Dimensions (HxWxD)	MSA30 MI (Multi-Indicator)	34.38 x 34.375 x 12 in (87.33 x 87.313 x 30.48 cm)
	MSA30 SB (Single Bus)	34.38 x 34.375 x 12 in (87.33 x 87.313 x 30.48 cm)
	MSA30 DB (Dual Bus)	34.38 x 34.375 x 12 in (87.33 x 87.313 x 30.48 cm)
	Ultra320 4-Port Upgrade I/O Module	14.5 x 11.5 x 3.1 in (36.8 x 29.2 x 8 cm)
	Redundant Power Supply, 499 watts	12.75 x 8 x 3.75 in (32.13 x 20.16 x 9.45 cm)
LED Indicators (on front panel)	EMU Status LED (left)
	Enclosure Power LED (middle)
	Fault LED (right)
Drive LED Indicators (on drive trays)	Drive LED (top)
	On Line LED (middle)
	Drive Failure LED (bottom)
Enclosure LED Indicators (back of unit)	I/O Module (top)
	EMU (middle)
	Power supplies (bottom)
Input Requirements	Nominal Line Voltage	110 to 240 V AC
	Range Line Voltage	90 to 264 V AC
	Line Frequency	47 to 63 Hz
	Typical Input Current	2.3A at 120 V AC
Relative Humidity (non-condensing)	Operating	10% to 90%
	Shipping	5% to 90%
Controllers and Adapters Supported with MSA30 MI	PCI-X RAID Smart Array 6402 U320, 2CH
	PCI-X RAID Smart Array 6404 U320, 4CH
	PCI 4-Channel RAID160 SA SCSI Controller
	Smart Array 5302 with 128MB cache
	Smart Array 5304 with 256MB cache
	PCI Dual Channel Ultra160 SCSI Adapter
	PCI Ultra160 SCSI Adapter
	PCI 2 Port 100Base-T & 2 Port Ultra2 SCSI
	Windows and Linux Ultra160 SCSI Adapter
	Windows, Linux 2 port Ultra160 SCSI HBA
I/O Module Connector	Very High Density Cable Interconnect (VHDCI)
Power	377 Watts per supply (load)

BTU (220 volts)	Single power supply 14 drives	1164 BTUs/hour
	Single power supply 5 drives	536 BTUs/hour
	Single power supply 1 drive	273 BTUs/hour
	Dual power supply 14 drives	1232 BTUs/hour
	Dual power supply 5 drives	625 BTUs/hour
	Dual power supply 1 drive	352 BTUs/hour
Temperature Range	Operating	50° to 94° F (10° to 35° C°)
	Shipping	-40° to 151° F (-40° to 66° C)

Eigenschaften

Zustand: Es handelt sich um Gebrauchtware, welche von unserem Technikerteam getestet wurde. Die Ware ist technisch und optisch in einem einwandfreien Zustand, jedoch können teilweise Gebrauchtspuren zu sehen sein, inkl. 12 Monate ip4 Gewährleistung.
